CAT 2019 Slot 2 QA Question & Solution

GeometryMedium

Question

Two circles, each of radius 4 cm, touch externally. Each of these two circles is touched externally by a third circle. If these three circles have a common tangent, then the radius of the third circle, in cm, is

Options

$\frac{1}{\surd2}$
$\frac{\pi}{3}$
$\surd2$
1

Solution

Question Figure

Let 'h' be the height of the triangle ABC, semiperimeter(S) $= \frac{4+4+r+4+4+r}{2} = 8+r$,
$a=4+r, b=4+r, c=8$

Area of triangle ABC $=\ \ \sqrt{\ s\cdot\left(s-a\right)\left(s-b\right)\left(s-c\right)}=$
$= \sqrt{\left(\ 8+r\right)\times\ 4\times\ 4\times\ r}$ = $\ \frac{\ 1}{2}\times\ \left(4+4\right)\times\ height$

Height (h) = $\sqrt{\ \left(8+r\right)r}$

Now, $h + r = 4 \longrightarrow  \sqrt{\ \left(8+r\right)r} + r = 4$ (Considering the height of the triangle)

$\sqrt{\ \left(8+r\right)r}$=4-r

16r=16

r=1


Alternatively,

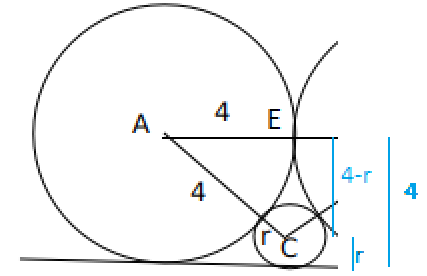

Question Figure

$\text{AE}^@+\text{EC}^2=\text{AC}^2 \longrightarrow 4^2+\left(4-r\right)^2 = \left(4+r\right)^2 \longrightarrow\ \longrightarrow\ \longrightarrow\ r=1$
